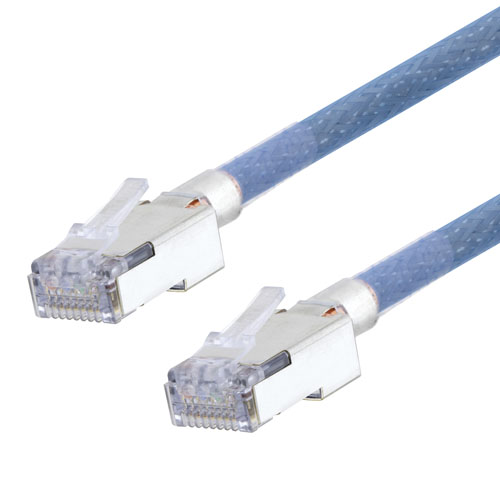

Category 5e Slim Aerospace Ethernet Cable High-Temp Double Shielded FEP Blue RJ45, 1.0ft

SKU TRA5261S-1F

Available for backorder

Quantity Price

1 - 24 $74.99

25 - 49 $71.24

50 - 99 $67.49

100 + Call Us

Price $74.99

Quantity

All Prices are in US Dollars and do not include duties

L-com's Aerospace and High Temperature Ethernet assemblies are here to meet your aerospace, high temp, military and aerospace-lite needs. These cables are ideal for use in cabin management, in-flight systems, backbone avionics, ground vehicle trunks, high-temp testing and for general military, avionics or aerospace use. All cables are double shielded with both 100% foil and 85% braid shields for maximum EMI and RFI protection. They are highly flexible and easy to install as well as light weight and durable. The special FEP jacket is rated for a wide temperature range of -55° to +150°C. These assemblies comply with all RoHS directives and pass FAR, Airbus and Boeing requirements for smoke and toxicity. Available in Category 5e, Category 5e Slim and Category 6a. Don't see the connector or length you are looking for? Please contact us today with your custom requirements.

Features

Aerospace rated Ethernet Cable; Category 5e speed with Slim construction
Slim construction with lighter weight (30lbs/1KFT), smaller diameter (0.205") and tighter bend radius (1.0") than standard sized cables; ideal for routing in tight spaces
Double Shielded with 100% Foil and 85% Braid and 26AWG stranded conductors for flexibility
Light blue FEP jacket with fire properties that if tested will meet or exceed the requirements of Federal Aviation Regulation (FAR) 25.869, FAR 25.853, Airbus ABD0031 and Boeing D6-51377; Separate testing and qualification may be required for your application as certification authority and documentation does not reside with L-com
Broad temperature range of -55°C (-67°F) to +150°C (+302°F) is suitable for both high temperature and low temperature applications

Application

Aerospace, Aerospace-lite, Avionics and Avionics-lite
Military and Military-lite
Ethernet Backbone
Trunk and Bus
In-Flight Entertainment, In-seat wiring and Cabin Management

Product Resources

2D Drawing (.pdf)

Product Compliance

REACH status

Not Available

RoHS status

Not Available

TSCA status

Not Available

PFAS status

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
