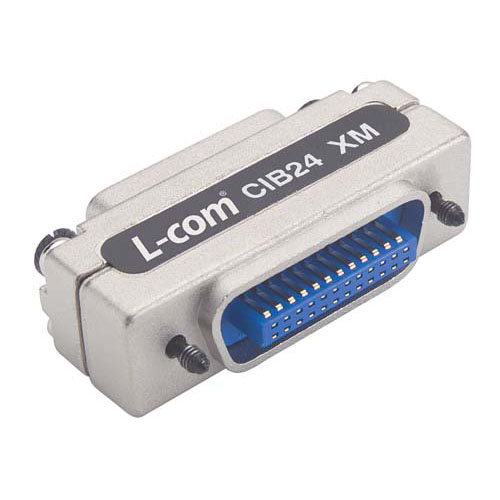

Modified IEEE-488 Extender, Male / Female

SKU CIB24XM
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


This unique extender has a modified male connector flange that is intentionally made shorter. Prevents problems in applications requiring plugging into a receptacle that is mounted on a thick panel that interferes and will not allow the connector to seat properly. Also provides a one inch extension allowing right angle cables that extra margin to clear nearby obstacles. Connectors are male to female and satisfy UL94V-0 flammability requirements. Quantity pricing available, please contact your L-com Sales Representative.

Features
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • Short male connector flange allows for mating to panel mounted female connectors
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • Cast aluminum housing provides durability
  • Connectors are male to female; mating hardware is M3.5 x 0.6 threaded

Application
  • Data Acquisition
  • Instrument Control
  • Test and Measurement
