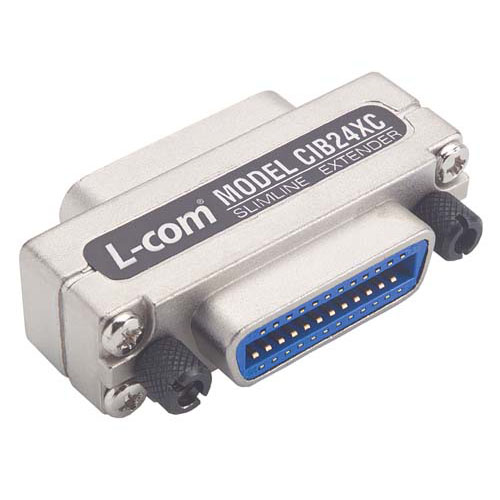

Slimline IEEE-488 Extender, Male / Female

SKU CIB24XC
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


This handy, hard to find extender is normally used to provide a one inch extension allowing right angle cables that extra margin to clear nearby obstacles. Special 0.73" height allows for use with computers having narrow port openings. It can also be used as a socket saver for expensive cables and ports by taking the abuse of frequently mated connectors. Connectors are male to female and satisfy UL94V-0 flammability requirements. Quantity pricing available, please contact your L-com Sales Representative.

Features
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • Provides a one inch clearance to extend GPIB ports
  • 0.73" height allows for use with computers or any port with narrow openings
  • Connector Orientation: Normal
  • UL94V-0 rated connector insulator satisfies flammability requirements

Application
  • Data Acquisition
  • Instrument Control
  • Test and Measurement
