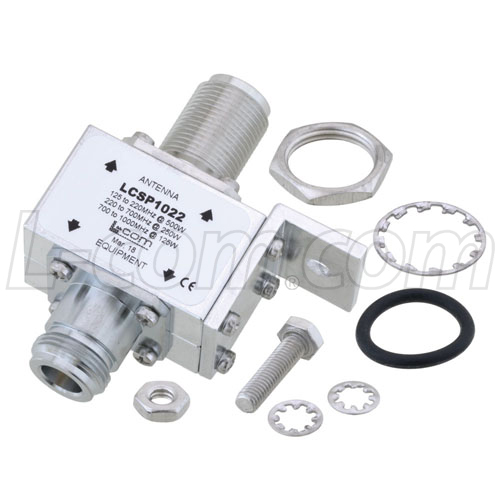

Type N F/F In/Out RF Surge Protector 125MHz - 1GHz DC Block 500W Blocking Cap and Gas Tube

SKU LCSP1022
QTY available 13
Quantity Price
1 - 9 $117.99
10 - 24 $113.27
25 - 99 $108.55
100 + Call Us
Price $117.99

All Prices are in US Dollars and do not include duties



RF surge protector (also known as lightning arrester) LCSP1022 from L-com utilizing a proprietary surge protection technology protects critical hardware from lightening events while maintaining the RF performance. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range and available in stock with same day shipping. Optional weather proofing kit and copper cleaning kit are available for purchase separately.

Features
  • DC Block
  • Multi-strike capability
  • VSWR <1.1
  • Frequency range from 10MHz to 1GHz
  • Surge current of 20kA

Application
  • Ham radios
  • HF, UHF, and VHF radios
  • Remote industrial monitoring


Product Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
N
Connector In Gender
Female
Connector Out Series
N
Connector Out Gender
Female
Minimum Frequency
125 MHz
Maximum Frequency
1 GHz
Maximum Input Power
500 Watts
Direction
Directional
Throughput Energy
800 uJ
