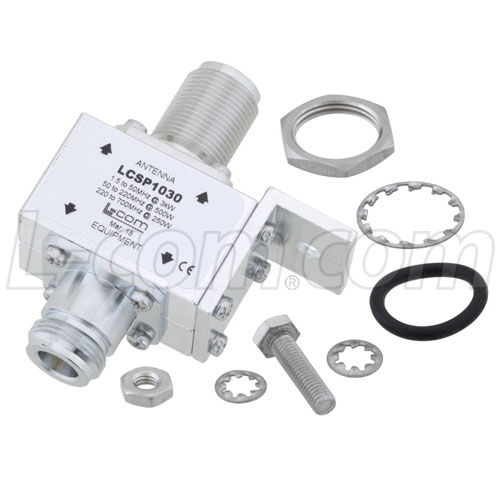

Type N F/F In/Out RF Surge Protector 1.5MHz - 700MHz DC Block 3kW 20kA Blocking Cap and Gas Tube

SKU LCSP1030
QTY available Call us
Quantity Price
1 - 9 $25.59
10 - 24 $24.57
25 - 99 $23.54
100 + Call Us
Price $25.59

All Prices are in US Dollars and do not include duties



RF surge protector (also known as lightning arrester) LCSP1030 from L-com utilizing a proprietary surge protection technology protects critical hardware from lightening events while maintaining the RF performance. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range and available in stock with same day shipping. Optional weather proofing kit and copper cleaning kit are available for purchase separately.

Features
  • DC Block
  • Frequency range from 10MHz to 1GHz
  • Multi-strike capability
  • VSWR <1.1
  • Surge current of 20kA

Application
  • Ham radios
  • HF, UHF, and VHF radios
  • Remote industrial monitoring


Product Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
N
Connector In Gender
Female
Connector Out Series
N
Connector Out Gender
Female
Minimum Frequency
1.5 MHz
Maximum Frequency
700 MHz
Maximum Input Power
3,000 Watts
Direction
Directional
Throughput Energy
20 uJ
