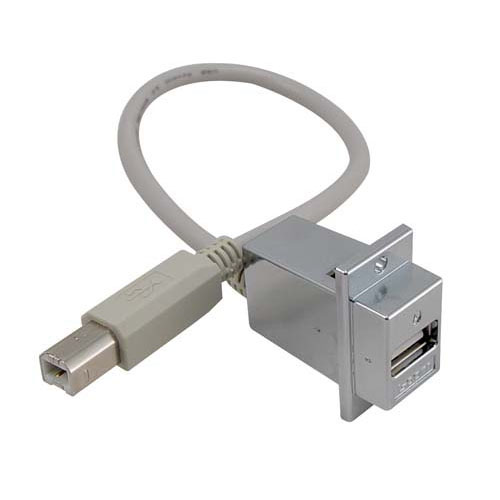

USB Surge Protector, Type B / Type A Panel Mount Style with Pigtail Cable - 72"

SKU AL-ECF504-AB72

Available to Ship 39

Quantity Price

1 - 24 $65.99

25 - 49 $62.69

50 - 99 $59.39

100 + Call Us

Price $65.99

Quantity

All Prices are in US Dollars and do not include duties

L-com's AL-ECF504-AB72 USB surge protector is a commercial quality device designed to protect a computer's sensitive USB ports from power surges and spikes from attached devices. To ensure USB 2.0 speeds, the device uses ultra-low capacitance diodes to protect the data lines. In addition, a protection device clamps the power lines to safe levels. This USB surge protector is ideal for protecting a PC from WiFi client adapters and surveillance cameras used with long USB extender cables. Other uses include protection from surges when using USB-RS422/485 converters with long cables.

The AL-ECF504-AB72 can be mounted in an enclosure, panel, wall plate, or used in-line as a standalone product. It features a fully shielded 72" pigtail cable.

Click on the Downloads tab for additional information and complete specifications.

Features

Type A Female Bulkhead to Type B Male connectors
Allows USB cables to be passed through panels or enclosures
Power and data line protection
Shielded housing with shielded pigtail cable - 72"
USB 1.0 and 2.0 compatible

Application

Phone and DSL Modems
Serial adapters
Surveillance Cameras
WiFi Adapters
Printers and computer peripheral devices

Product Compliance

REACH status

Not Available

RoHS status

Not Available

TSCA status

Not Available

PFAS status

Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
