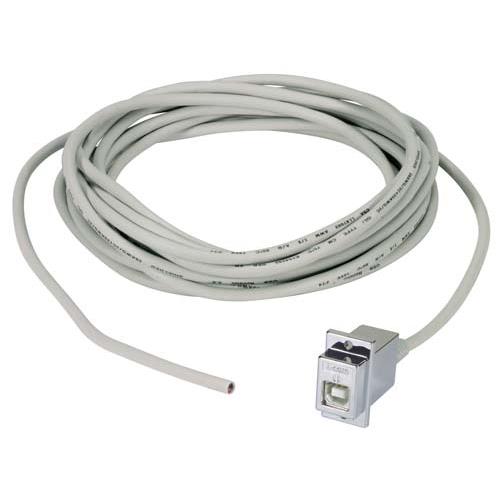

USBType B Female Panel Mount Connector - 5 Meter Pigtail Cable

SKU ECF504-B-5M
QTY available 52
Quantity Price
1 - 24 $26.79
25 - 49 $25.45
50 - 99 $24.11
100 + Call Us
Price $26.79

All Prices are in US Dollars and do not include duties



Another unique USB panel mount option allows the user the flexibility to configure their own assembly. It features a shielded bulkhead Type B Jack with 5 meters of un-terminated USB 2.0 compliant cable. The user can cut the cable to the desired length and hard wire or terminate it with their connector of choice. This assembly is fully shielded and uses the popular ECF style housing that is usable in virtually any panel thickness. L-com can custom terminate these cable ends with modest minimum requirements. Recommended 4-40 mounting screws must be purchased separately (P/N ECF440).Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral.

Features
  • 20 AWG power leads allow for maximum power transfer
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • Screw mount for secure installations
  • Allows USB cables to be passed through panels or enclosures
  • USB Type B panel mount female bulkhead connector with 5 meters of un-terminated USB cable
