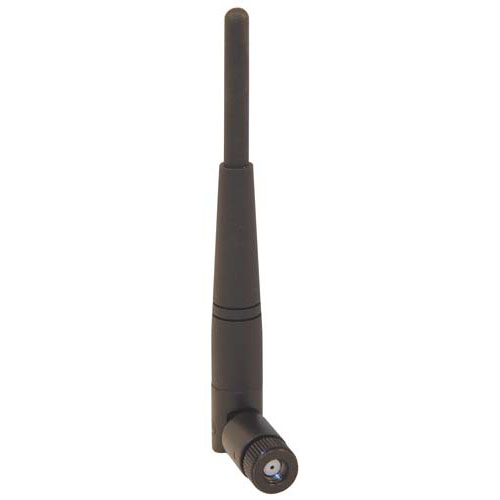

1.9 GHz 3 dBi Rubber Duck Antenna with RP-SMA Plug Connector

SKU HG1903RD-RSP
QTY available 5112
Quantity Price
1 - 24 $22.99
25 - 49 $20.69
50 - 99 $18.39
100 + Call Us
Price $22.99

All Prices are in US Dollars and do not include duties



This compact 1.9GHz omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for Personal Communication Services (PCS) cellular radio wireless applications where omni-directional coverage and low visibility are desired.

Only 5.2" long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA plug connector, allowing them to be used vertically, at a right angle, or any angle in-between.

Optional Connectors can be ordered. Contact Hyperlink sales for more information.

Optional Magnetic Mount
When purchased with the optional HMA6 magnetic mount, this antenna can be used with a wide range PCS devices that do not have RP-SMA connectors.

Features
  • Tilt and swivel design
  • Compact size, only 5.2 " long
  • Flexible "Rubber Duck" antenna
  • RP-SMA Connector

Application
  • 1.9 GHz band applications
  • GPRS/EDGE or CSD, (WAN) connections on GSM 1900 networks (Sony Ericsson® Edge PC-Card)
  • LTE
  • Mobile applications
  • PCS cellular radio applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
2:1
