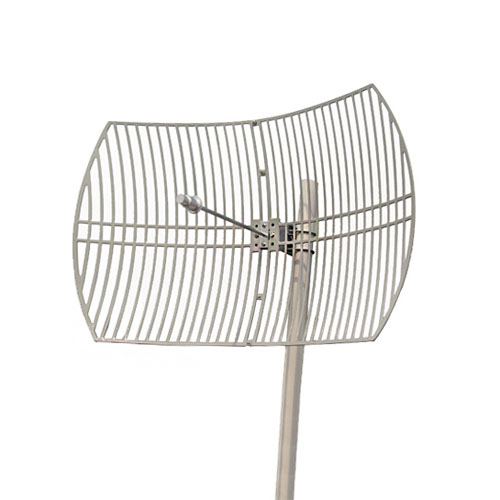

3.5 GHz 27 dBi Lightweight Die-cast Grid Antenna - N-Female Connector

SKU HG3527EG
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


3.5 GHz Parabolic Grid Antenna features excellent front to back ratio. It is ideally suited for directional applications, backhaul applications and point to point systems. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.

3.5 GHz Parabolic Grid D Antenna construction features a rust-proof die cast aluminum reflector grid for superior strength and light weight. This antenna's 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. The antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degree of incline for easy alignment. It can be adjusted up or down from 0 to 60deg.


Features
  • Superior performance
  • All weather operation
  • Easy to assemble
  • High Gain
  • UV stable light gray powder coat finish

Application
  • Long-range Directional Applications
  • 3.5GHz WiMax system
  • 3.5GHz Wireless access system
  • Point to Point and Multipoint Systems
  • Wireless Bridges


Product Resources

Key Specifications

Key Specifications

Antenna Type
Grid
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
