  6. 3.5GHz 5 dBi Rubber Duck Antenna with RP-SMA Plug Connector

3.5GHz 5 dBi Rubber Duck Antenna with RP-SMA Plug Connector

SKU HG3505RD-RSP
QTY available 415
Quantity Price
1 - 24 $25.79
25 - 49 $23.21
50 - 99 $20.63
100 + Call Us
Price $25.79

All Prices are in US Dollars and do not include duties

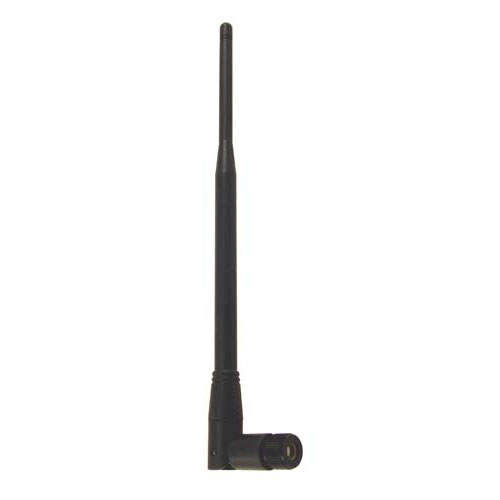

This high performance 3.5 GHz omnidirectional "rubber-duck" antenna provides broad coverage and 5 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.

Measuring 8.2" long, this flexible antenna features a tilt-and-swivel Reverse Polarity SMA-Plug (RP-SMA) connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for 3.5GHz radios that are equipped with RP-SMA connectors.

Click on the Datasheet below to view the Antenna Gain Pattern.

Features
  • Flexible "Rubber Duck" antenna
  • Reverse Polarity SMA-Plug (RP-SMA) Connector
  • Tilt and swivel design

Application
  • 3.5 GHz Band Applications
  • Wireless LAN systems
  • Multipoint and Mobile Applications
  • SOFDMA
  • WiMAX & Mobile WiMAX


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Maximum Input VSWR
2:1
