Coaxial 50 Ohm Right Angle Adapter, SMA Female / Male

  • Picture of Coaxial 50 Ohm Right Angle Adapter, SMA Female / Male
  • Picture of Coaxial 50 Ohm Right Angle Adapter, SMA Female / Male
  • Picture of Coaxial 50 Ohm Right Angle Adapter, SMA Female / Male

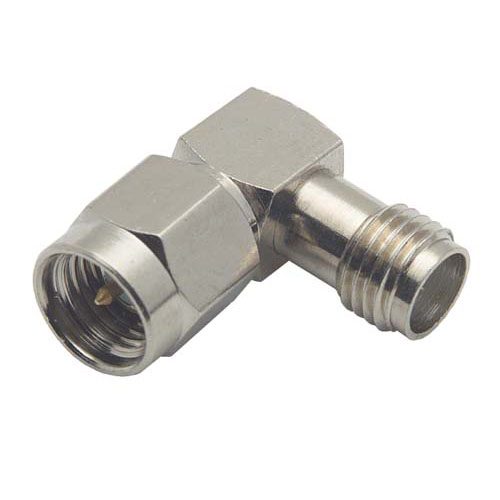

Picture of Coaxial 50 Ohm Right Angle Adapter, SMA Female / Male
SKU BA20
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By: BA20-N


This right angle SMA male to female adapter features a compact profile ideal for limited space applications. This adaptor can also be used to convert an in line SMA male cable connector to a 90 degree configuration by attaching to cable end.

Features
  • Allows interconnection of devices with SMA interfaces
  • Handy device to have on hand to solve your interconnection problems
  • Nickel plated body for enhanced corrosion resistance
  • Gold plated center contact for reduced signal loss
  • Right angle configuration useful in tight fit situations

Application
  • Coaxial interface conversion
  • Coax retrofit applications
  • Coaxial Extension
  • OEM coax applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
SMA
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
SMA
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Adapter Body Style
Right Angle
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
