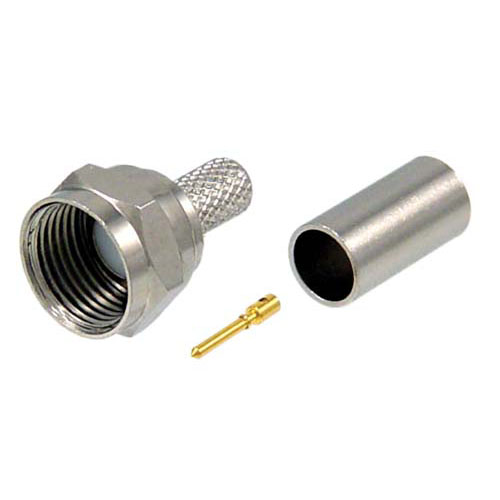

F-Type Male Crimp for RG58, 195-Series

SKU AFM-1700
QTY available 7871
Quantity Price
1 - 24 $6.59
25 - 49 $5.93
50 - 99 $5.27
100 + Call Us
Price $6.59

All Prices are in US Dollars and do not include duties



Most F-Type connectors use the cable's inner conductor as the connector's center pin. Common problems with this type of connector is the pin is more prone to bending. The AFM-1700 features a gold plated center pin. This pin is soldered to the cable's inner connector which makes this connector stronger and more durable.

Features
  • Designed for crimp attachment to RG6 and RG6QS coaxial cable utilizing a standard .360 crimp size
  • Nickel plated bodies for superior resistance to corrosion
  • O-ring design plus silicone sealant results in a weather resistant design
  • Threaded style coupling 75 Ohm coaxial connector
  • Can be used with HyperLink CA-195R, RG58/141/142‚ HyperLink CA195RW‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types

Application
  • RG58 applications
  • 50 Ohm applications


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
F
Connector Gender
Male
Impedance
75 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
2 GHz
Interface Type 1
RG58
Interface Type 2
195-Series
Interface Type 3
RG141
Interface Type 4
RG142
Interface Type 5
WBC195
Interface Type 6
Belden 8240
Interface Type 7
Belden 8219
