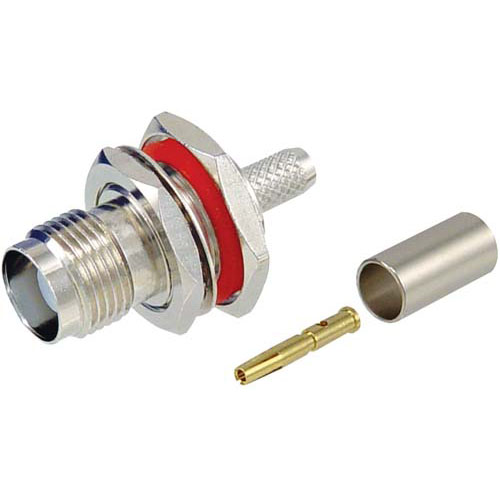

TNC Female Crimp Bulkhead for 195-Series Cable

SKU ATF-3700
QTY available 301
Quantity Price
1 - 24 $7.89
25 - 49 $7.10
50 - 99 $6.31
100 + Call Us
Price $7.89

All Prices are in US Dollars and do not include duties



This TNC Female Bulkhead Crimp Connector is ideal for WLAN and Wireless applications due to its crimp style termination and MIL-Std. 202 specified parts. The ATF-3700 can withstand up to 40 lbs. of pull retention to ensure the cable will not break in the event it gets pulled or jolted. This connector is compatible with L-com CA-195R, RG58, RG141, RG142‚ L-com CA195RW‚ WBC-195‚ LMR®195‚ Belden 8240, and Belden 8219 cable types. Order online today!

Features
  • Commonly found .078 pin and .178 ferrule crimp sizes
  • Threaded style 50 Ohm interface for high vibration applications
  • Can be used with L-com CA-195R, RG58/141/142‚ L-com CA195RW‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types
  • Crimp style attachment results in robust connector to cable attachment
  • Standard bulkhead .5 inch single D mounting hole

Application
  • WiFi
  • 50 Ohm applications
  • Wireless Networks
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
TNC
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Minimum Frequency
DC
Maximum Frequency
11 GHz
Interface Type 1
195-Series
Interface Type 2
CA-195R
Interface Type 3
RG141
Interface Type 4
RG142
Interface Type 5
CA-195RW
Interface Type 6
WBC195
Interface Type 7
Belden 8240
Interface Type 8
Belden 8219
