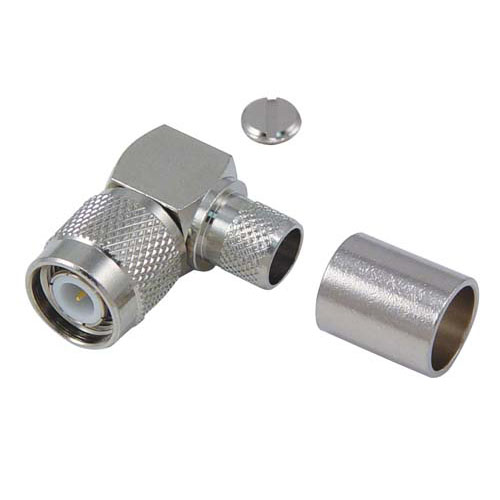

TNC Male Crimp Right Angle for 400-Series Cable

SKU ATM-1416
QTY available 254
Quantity Price
1 - 24 $12.79
25 - 49 $11.51
50 - 99 $10.23
100 + Call Us
Price $12.79

All Prices are in US Dollars and do not include duties



This TNC Male Right Angle connector has been specifically designed for a crimp on style attachment to 400-Series Low-Loss cable. The connector body and coupling nut are machined and nickel plated for superior corrosion resistance and durability. Gold plating is utilized on the center pin for low contact resistance.

Features
  • Can be used with RG8‚ WBC400‚ LMR®400‚ L-com CA-400 and CA-400UF, Belden 9913, 7810 cable types
  • Crimp style attachment results in robust connector to cable attachment
  • Gold plated contact pin reduces signal loss
  • Nickel plated clamp nut and body provides optimum resistance to corrosion

Application
  • Coaxial cable assembly
  • Premise wiring
  • WLAN
  • Coaxial cable repair


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
TNC
Connector Gender
Male
Impedance
50 Ohm
Body Style
Right Angle
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
400-Series
Interface Type 2
RG8
Interface Type 3
WBC400
Interface Type 4
CA-400
Interface Type 5
CA-400UF
Interface Type 6
Belden 9913
Interface Type 7
Belden 7810
