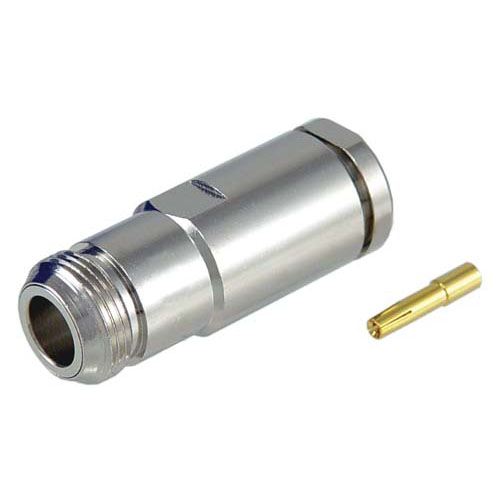

Type N Female Clamp for RG8, 400-Series Cable

SKU ANF-2400
QTY available 1686
Quantity Price
1 - 24 $10.59
25 - 49 $9.53
50 - 99 $8.47
100 + Call Us
Price $10.59

All Prices are in US Dollars and do not include duties



This Type N Female Clamp connector is designed for use with RG8 and 400-series Cable. The ANF-2400 can be used with RG8‚ WBC-400‚ LMR®400‚ Belden 9913 and Belden 7810 cable types. This connector is designed for use in the wireless space as well as WLAN and coaxial applications. The nickel plated brass body combined with gold finished center contact drastically increases signal interference to the cable. Order online today!

Features
  • Can be used with RG8‚ WBC400‚ LMR®400‚ HyperLink CA-400, Belden 9913, 7810 cable types

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • RF Applications
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
11 GHz
Interface Type 1
RG8
Interface Type 2
WBC400
Interface Type 3
Belden 9913
Interface Type 4
Belden 7810
