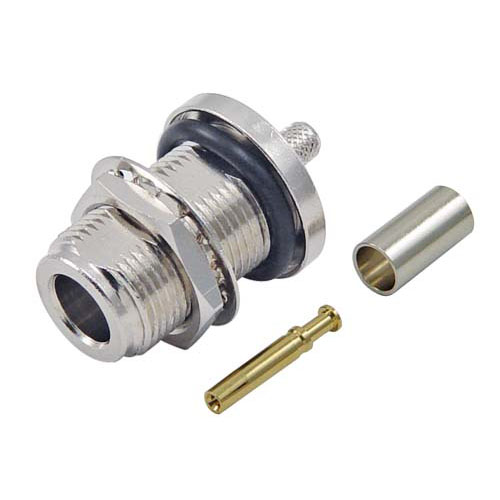

Type N Female Crimp Bulkhead for RG58, 195-Series Cable

SKU ANF-3700
QTY available 98
Quantity Price
1 - 24 $11.39
25 - 49 $10.25
50 - 99 $9.11
100 + Call Us
Price $11.39

All Prices are in US Dollars and do not include duties



This Type N Female Crimp Bulkhead Connector is designed for use with RG58 and 195-series cable. The ANF-3700 Can be used with RG58, RG141, RG142‚ L-com CA-195‚ WBC--195‚ LMR®195‚ Belden 8240 and Belden 8219 cable types. This connector is designed for use in the wireless space as well as 802.11a/b/g/n. The bulkhead design allows for the connector to provide extra resistance against pulling of the cable. Order online today!

Features
  • Features Nut, Lock Washer and O-Ring for securing to bulkhead
  • Can be used with RG58/141/142‚ L-com CA-195‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types

Application
  • Antenna pigtail
  • Wireless networks
  • WLAN
  • 802.11a/b/g/n
  • WiFi


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Minimum Frequency
DC
Maximum Frequency
3 GHz
Interface Type 1
RG58
Interface Type 2
RG141
Interface Type 3
RG142
Interface Type 4
CA-195
Interface Type 5
WBC195
Interface Type 6
Belden 8219
Interface Type 7
Belden 8240
