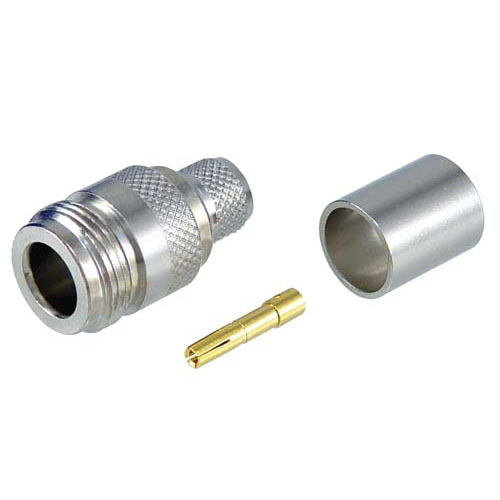

Type N Female Crimp for 400-Series Cable

SKU ANF-1406
QTY available 890
Quantity Price
1 - 24 $10.39
25 - 49 $9.35
50 - 99 $8.31
100 + Call Us
Price $10.39

All Prices are in US Dollars and do not include duties



The L-com ANF-1406 is an N Female Crimp connector for 400-series cable which uses quality materials and components. Designed specifically for 400-series Cable, this product is ideal for applications such as Wireless networks, 802.11a/b/g/n and WLAN. This connector contains a cable retention for over 40 lbs. of pull tnesion as well as a 2500 voltage rating. Order online today!

Features
  • Can be used with RG8‚ WBC400‚ LMR®400‚ Belden 9913, HyperLink CA-400, Belden 7810 cable types

Application
  • WiFi
  • Wireless networks
  • 802.11a/b/g/n
  • Antenna pigtail
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
RG8
Interface Type 2
WBC400
Interface Type 3
Belden 9913
Interface Type 4
Belden 7810
