Type N Male Crimp for Belden 9913 Cable

SKU HPC994
QTY available 12
Quantity Price
1 - 24 $22.79
25 - 49 $21.65
50 - 99 $20.51
100 + Call Us
Price $22.79

All Prices are in US Dollars and do not include duties

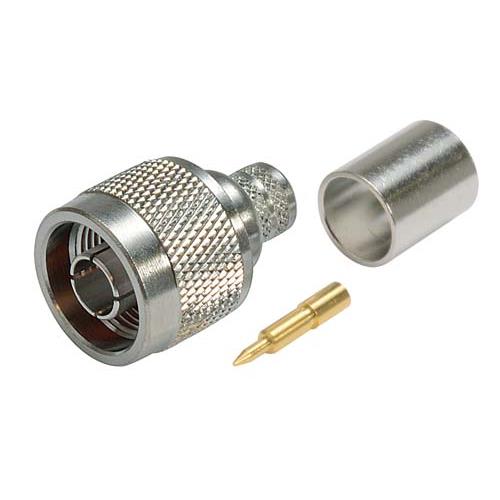

This Type N male connector is designed for attachment to Belden 9913 cable. Belden 9913 cable is a RG8 size cable with low loss performance characteristics. This crimp style connector utilizes readily available crimp sizes of .429" for the crimp sleeve and .118" for the center contact, to securely attach to the cable.

Features
  • Common size hex crimp allows quick and easy crimping
  • Crimp style attachment for a robust assembly
  • Three piece design simplifies assembly process
  • Gold plated contact pins to minimize signal loss
  • Type N male for Belden 9913 coaxial cable

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • RF Applications
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Interface Type 1
Belden 9913
