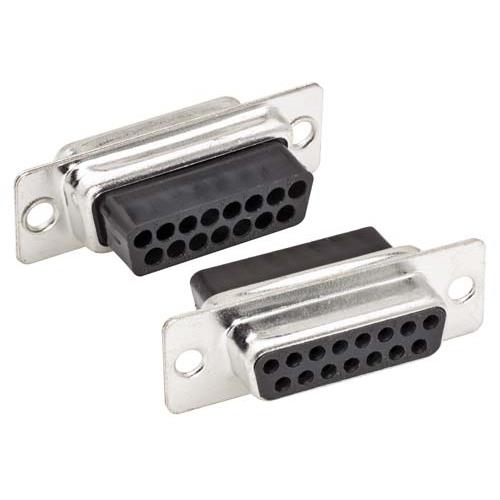

Insertion Type D-Sub Connector, DB15 Female

SKU C&P15F
QTY available 782
Quantity Price
1 - 24 $2.63
25 - 49 $2.37
50 - 99 $2.10
100 + Call Us
Price $2.63

All Prices are in US Dollars and do not include duties



Many "do it yourself" users prefer crimp style D-sub connectors over solder style. These DB15 connectors conform to commercial industry standards and can be used with any standard female D-sub contact, including L-com's CPF family of contacts. Insertion/extraction tools TDT or TDTPRO are recommended for any changes necessary. Volume discounts are available, please contact your L-com Sales Representative.

Features
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • Also available in 9, 25, 37 and 50 position sizes
  • Compatible with wire ranges of 20-28 AWG
  • Industry standard commercial DB15 female crimp connector
  • Use with any commercial D-Sub female crimp contact such as L-com's CPF line

Application
  • Device management
  • Data networks
  • Instrument control
  • Serial data transmission
