100/1000 Base-T Power Over Ethernet (PoE) Splitter/Tap with Adjustable DC Output

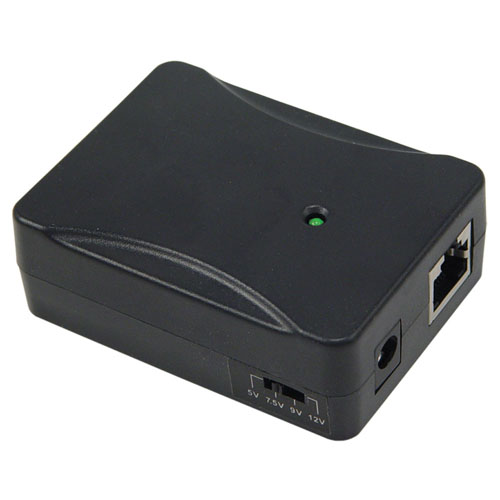

  • Picture of 100/1000 Base-T Power Over Ethernet (PoE) Splitter/Tap with Adjustable DC Output
Picture of 100/1000 Base-T Power Over Ethernet (PoE) Splitter/Tap with Adjustable DC Output
SKU BT-CAT5-R0512
Available to Ship Call us
Quantity Price
1 - 24 $67.99
25 - 49 $64.59
50 - 99 $61.19
100 + Call Us
Price $67.99

All Prices are in US Dollars and do not include duties



The BT-CAT5-R0512 Power-Over-Ethernet (PoE) Splitter/Tap delivers both data and DC power to non-PoE equipped Ethernet devices using a single CAT5 cable. This eliminates the need to place an Ethernet enabled device such as a wireless access point or IP camera near a power outlet, giving you more freedom in placement.

With the BT-CAT5-R0512, both power and data can be transmitted up to 328 feet (100m) using standard Ethernet cabling with virtually no reduction in data throughput. The unit supports both Fast and Gigabit Ethernet speeds.

Adjustable Output Voltage

The BT-CAT5-R0512 features a user adjustable output voltage selector. It can be set for 5VDC, 7.5VDC, 9VDC or 12VDC allowing it to be used with a wide range on non-PoE devices.

802.3af Compliant

The BT-CAT5-R0512 is compliant with 802.3af PoE. The unit is unique in that is works with both 802.3af compliant network switches (PoE Mode A) and Midspan/Injectors (PoE Mode B).

Included with the BT-CAT5-R0512 is an 18 inch DC Power Cable Kit. This kit includes both 2.1mm and 2.5mm DC Plugs, in both straight and right angle configurations.

For additional information and complete specifications, click on the data sheet link below.


Features
  • Auto-detects PoE equipment
  • 10/100/1000 Mbps Base-T data rates
  • Complies with IEEE 802.3af Power over Ethernet
  • Provides Over Thermal (OTP), Over Current (OCP) and Over Voltage (OVP) protection
  • User adjustable output voltage - 5V/7.5V/9V/12V DC

Application
  • Non-PoE access points and IP cameras
  • Splits PoE into separate DC power and data
  • Use non-PoE devices with 802.3af switches/midspans
  • Deliver DC power to locations where there are no power lines or outlets
  • Provide power to non-PoE devices


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
