SMA Female Bulkhead Crimp for 400-Series Cable

SKU HPC403
QTY available Call us
Quantity Price
1 - 24 $3.33
25 - 49 $3.16
50 - 99 $3.00
100 + Call Us
Price $3.33

All Prices are in US Dollars and do not include duties

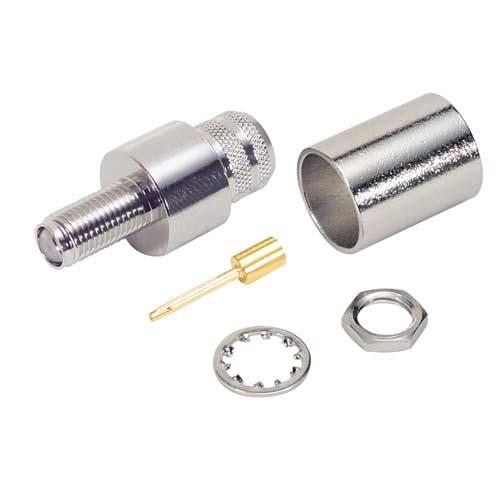

This female bulhead SMA connector is designed for crimp attachment to LMR400 style coaxial cable utilizing a standard crimp size of .429" for the crimp ferrule. The contact pin is designed for solder attachment to the cable center conductor. Connector is supplied with nut and lock washer for panel mounting.

Features
  • Common size hex crimp allows quick and easy crimping
  • Gold plated contact pins to minimize signal loss
  • Crimp style attachment for a robust assembly
  • SMA female bulkhead for LMR400 coaxial cable

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN
  • RF Applications


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
SMA
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Interface Type 1
LMR-400
