Type N Female Panel Mount Solder 4-Hole 1 in. Flange

SKU ANF-4000
QTY available 765
Quantity Price
1 - 24 $9.69
25 - 49 $8.72
50 - 99 $7.75
100 + Call Us
Price $9.69

All Prices are in US Dollars and do not include duties

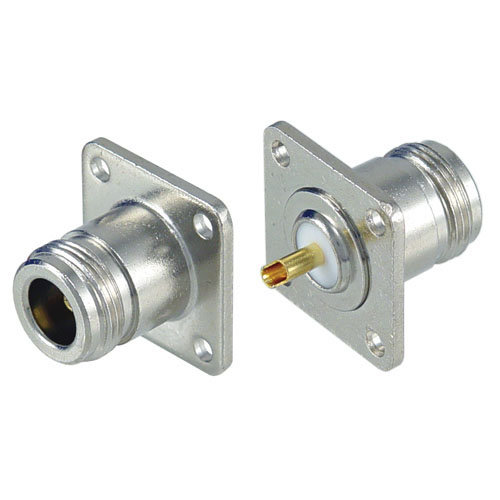

The L-com ANF-4000 is a Type N Female Panel Mount Solder connector which features four screw holes. This product is ideal for applications such as coaxial cable assembly, radio pigtails and WLAN. The panel mount design will ensure no external strain on the back of the connector which will create a lower risk for failure. The panel mount design will also lengthen the life of your device due to the reduced strain. Other technical specs include a frequency range of 6 GHz, 50 Ohm impedance and a Nickel plated Brass body on the connector. Various features of this cable meet MIL-Std. 202. Buy now!

Features
  • Panel mount connector
  • 1" flange

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN
  • RF Applications


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
4 Hole Flange
Minimum Frequency
DC
Maximum Frequency
11 GHz
